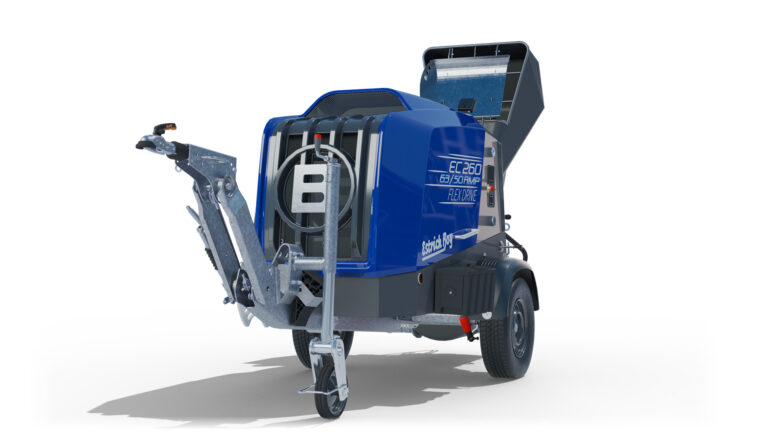

ESTRICHBOY EC 260/45

Fully electric, fully powerful, fully quiet

Robust electric drive unit with direct compressor drive
FlexDrive: Operation with either 63 or 50 amps for maximum flexibility
More than 6 dB quieter, ideal for closed rooms and soundproofed areas
Minimal operating costs and low maintenance costs
Automatic current phase detection
User-friendly thanks to ideally positioned air taps and feeder lever

Delivery rate 3.8 - 5 m³/h
Delivery range horizontally up to 180 m*
Delivery range vertically up to 90 m*
Drive type Electric 37.0 kW

Technical data

Mixer drum	260 l
Conveying distance gross	180 m* horizontally
Funding level	90 m* vertically
Delivery pressure	8 bar
Max. Grain size	16 mm
Material feed rate	3.8 – 5 m³/min*
Compressor air capacity	4.35 m³/min
Motor power	Electric 37.0 kW

Downloads

All important data and information can also be found in our datasheet and brochure.

Datasheet

Brochure

*depending on the material composition, e.g. grain size, water content, etc.

Versions

	EC 260/45	EC 260/45 B	EC 260/45 BS
	Basic version	with feeder	with feeder & scraper
Delivery rate	3.8 m³/h	4.6 m³/h	5.0 m³/h
Total weight	1 715 kg	1 840 kg	1 900 kg
L x W x H in mm	5 067 x 1 525 x 1 840 Standard	5 210 x 1 525 x 2 526 (B + BS)	5 210 x 1 525 x 2 526 (B + BS)
Filling height	820 mm (Standard)	400 mm (B + BS)	400 mm (B + BS)

New, revised oprating concept

Proven keypad: for intuitive operation, even when wearing gloves.
Colored LEDs: Operating status always visible.
Maximum user-friendliness: Feeder lever and air taps within easy reach.
Perfectly in view: pressure gauge for conveying and mixing pressure.
High-resolution display: Clear presentation and simple, logical menu navigation.

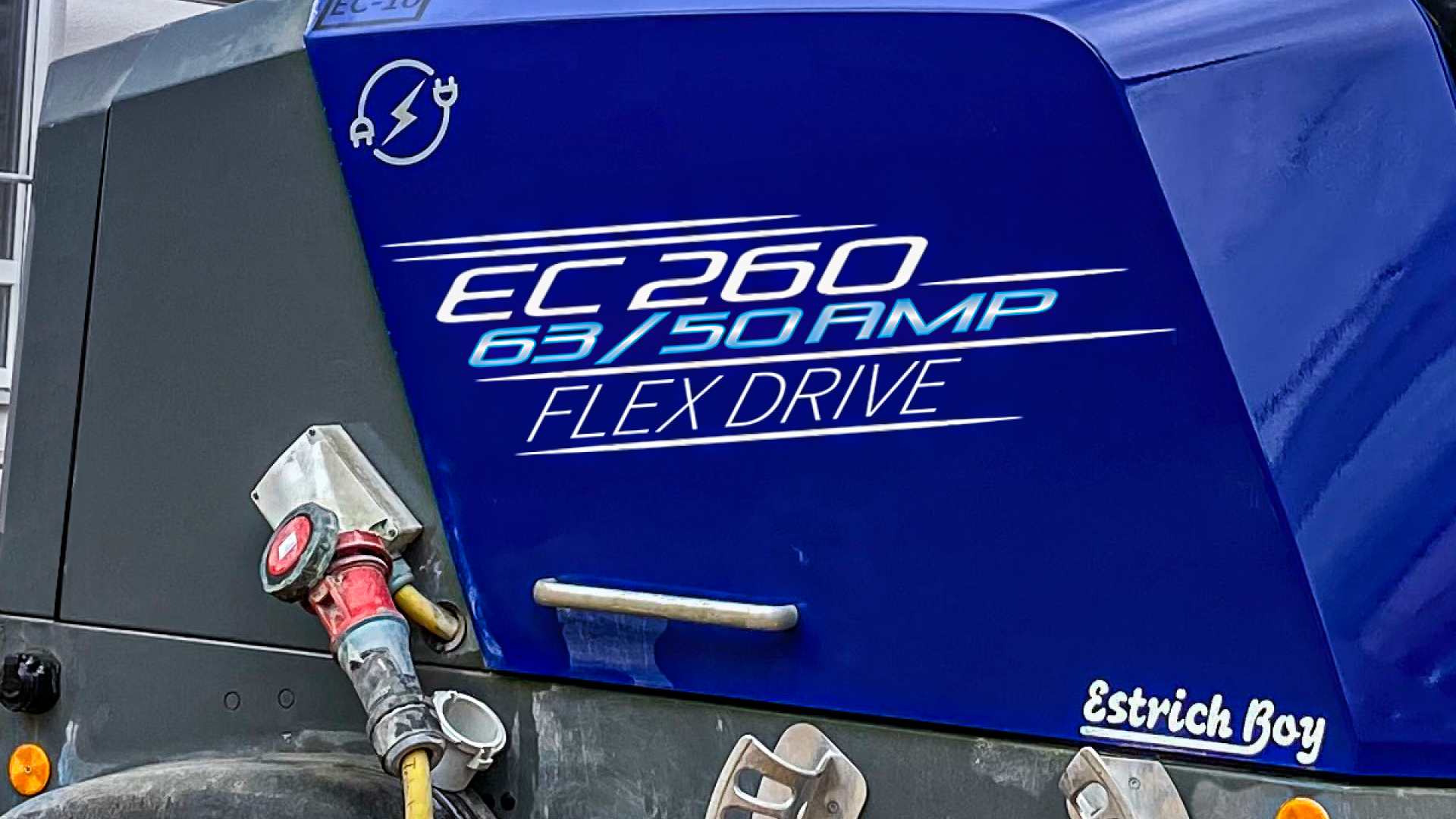

SIMPLE! FLEX DRIVE!

Depending on the power supply available, the machine can be operated with 63 or 50 amps.

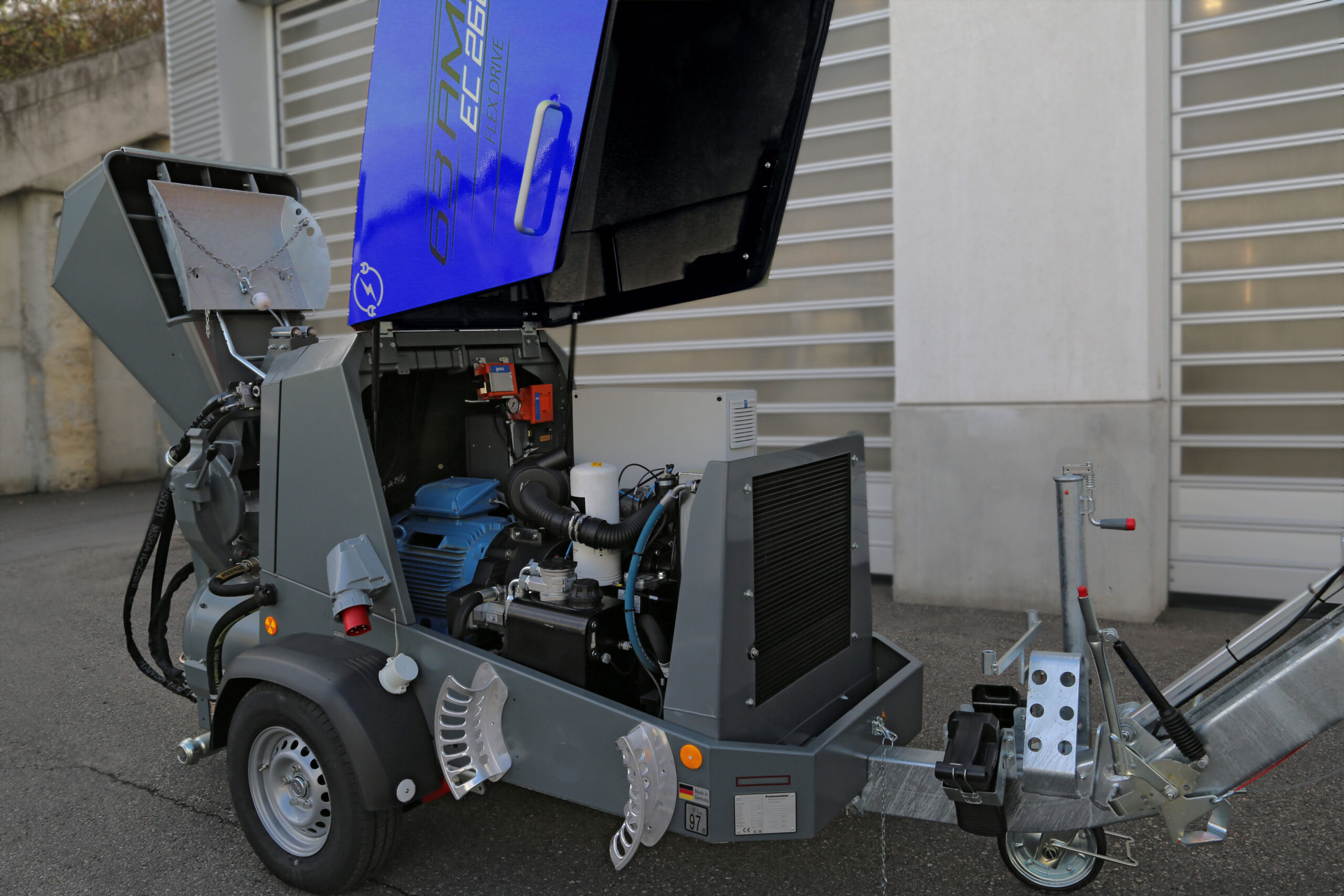

IDEAL ACCESSIBILITY

The innovative hood concept with removable rear section allows easy access to all important service and maintenance points.

Valuable detail

Crane eye for transportation by truck or on
the construction site

Equipment

Feature	Standard equipment	Special options
Frame	80 km/h axle Manual lid Light holder 12 V Car coupling Lifting eye	100 km/h axle Truck coupling Light holder 24 V
Function	Vessel outlet, center	High-wear plates Wear plates at the dome Wear plates impact protection (both sides) Protective plate for feeder Support feed (kettle) Styrofoam hopper
Control system	Radio remote control (for BS)	Telematics system for real-time monitoring Software package (mixing counter + mixing time setting)
Other	Standard paint finish (blue)	Work lights 12 V Connection cable 20 m (63 A) Cable holder Customer labeling Special canopy paint Location system Water dosing* Toolbox

The standard and special options differ depending on the country of delivery. Please contact your dealer directly if you have any questions. *Price on request.
