SMOOTHING MACHINE TL

The smoothing machine for professionals

  • For smoothing and compacting bonded and special screeds, concrete surfaces and industrial floors
  • Quick and easy replacement of the smoothing plate using 4 wing nuts
  • Smoothing plate removable for transportation

Technical data

Heightmin. 800 mm – max. 1100 mm
Smoothing plate Ø600 mm
Speed drive shaft125 rpm
Engine1,1 kW at 125 rpm 230 V AC, 50 Hz
Sound pressure level68 dB(A)
Power supplyCEE standard coupling, 16 A
Total weight42 kg (36 kg without smoothing plate)

Downloads

All important data and information can also be found in our datasheet and brochure.

Datasheet

FULLY FLEXIBLE

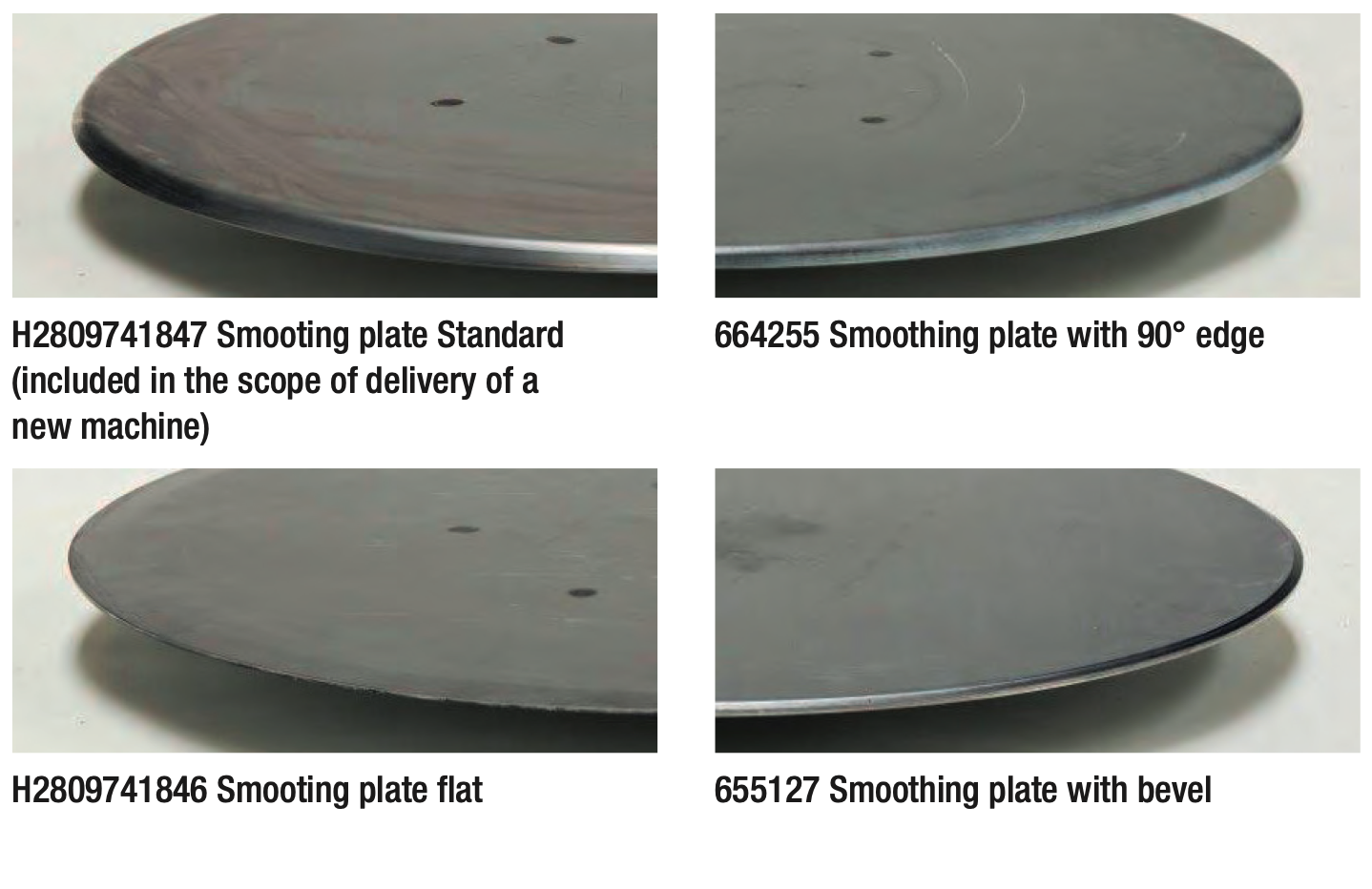

Different smoothing plates can be used

CLEVERLY MADE

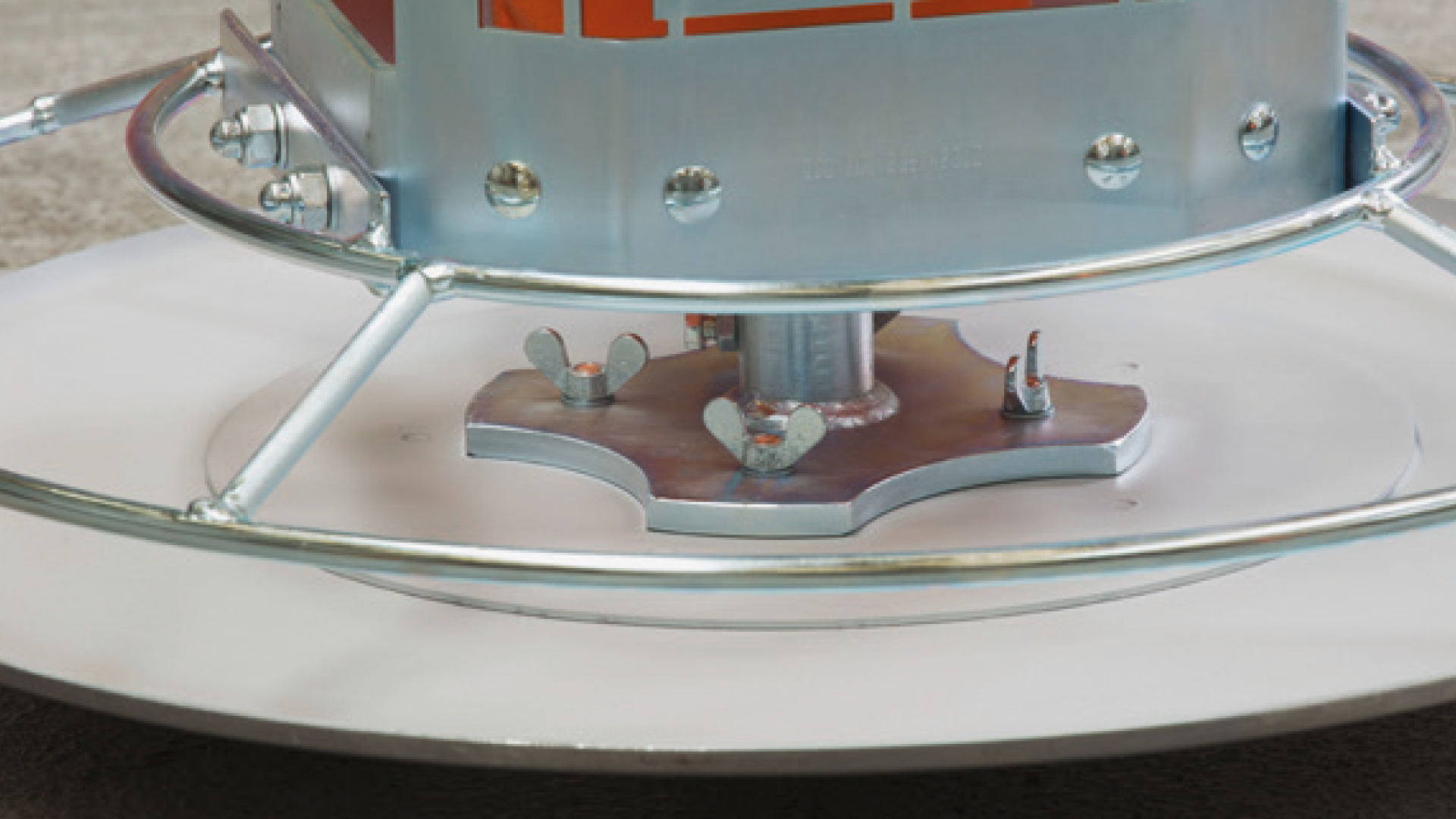

Wing nuts for quick, uncomplicated changing of the smoothing plate.
