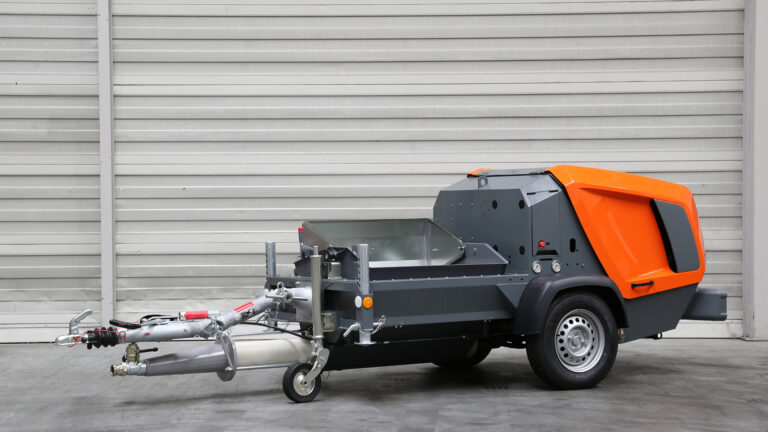

WORM PUMP FHS 250

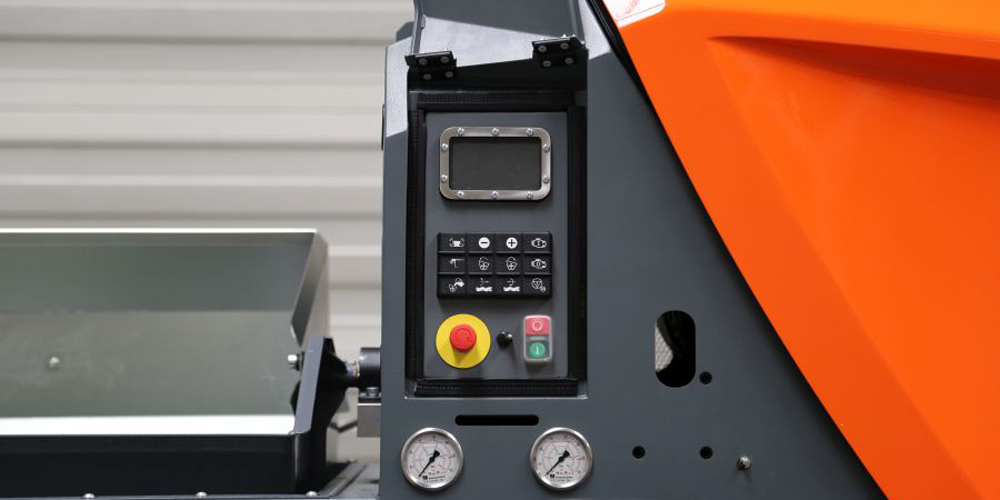

FHS 250 worm pump with central control unit

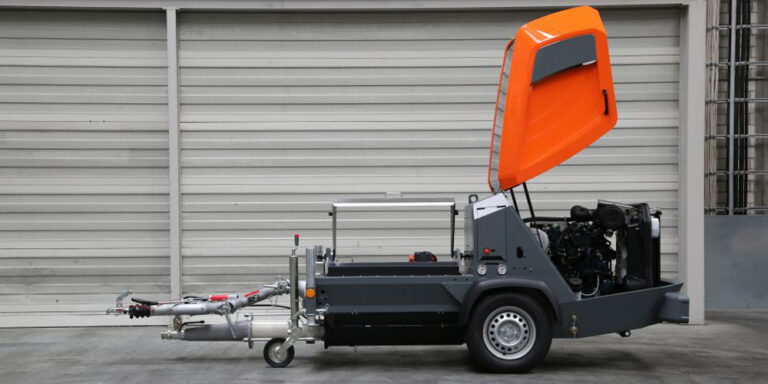

FHS 250 worm pump with robust plastic cover

The robust powerhouse for liquid screed

For liquid screed up to 12 mm grain size

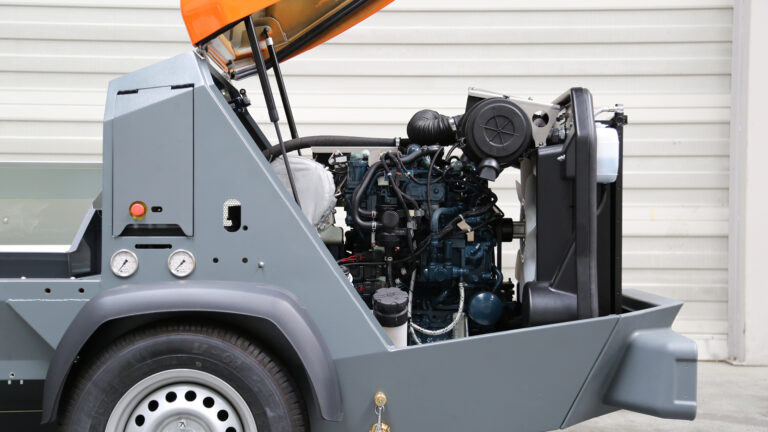

Quiet 3-cylinder Kubota engine with 37.0 kW (Stage V)
Low filling height facilitates cleaning and loading with truck mixer
Radio remote control with many functions

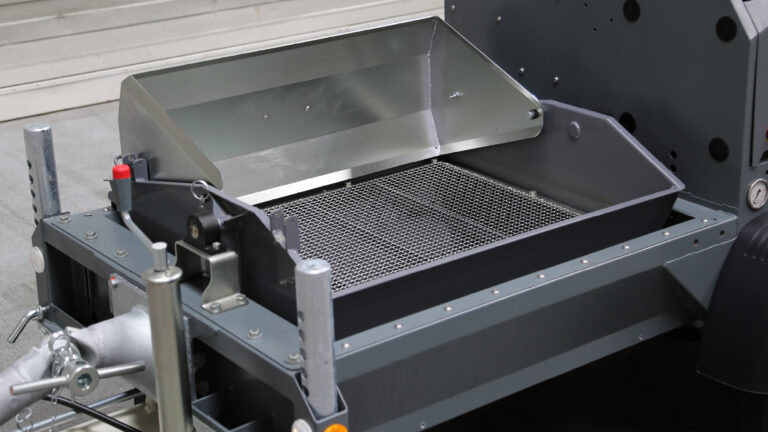

Integrated sieve grid on the vibrator (standard) prevents oversized particles
Robust, durable plastic hood

Delivery rate up to 20 m³/h
Delivery range horizontally 200 m
Delivery range vertically 60 m
Engine Diesel, 3-cylinder Kubota

Technical data

Delivery range horizontally	200 m
Delivery range vertically	60 m (20 floors)
Delivery rate	up to 20 m³/h
Engine	3-cylinder Kubota, 37 kW at 2 700 rpm
Pump	Worm pump 7515 Premium
Max. particle size	8 mm
Hopper	250 l
Tank capacity	40 l
Total weight	1 050 kg
Chassis	braked, suitable for road use
Length x width x height	4 280 x 1 410 x 1 300 mm
Filling height	730 mm

Downloads

All important data and information can also be found in our datasheet and brochure.

Datasheet

*depending on the material composition, e.g. grain size, water content, etc.

SIMPLE! INTUITIVE!

Central control panel with intuitive keypad and clear display

PRACTICALLY PACKAGED

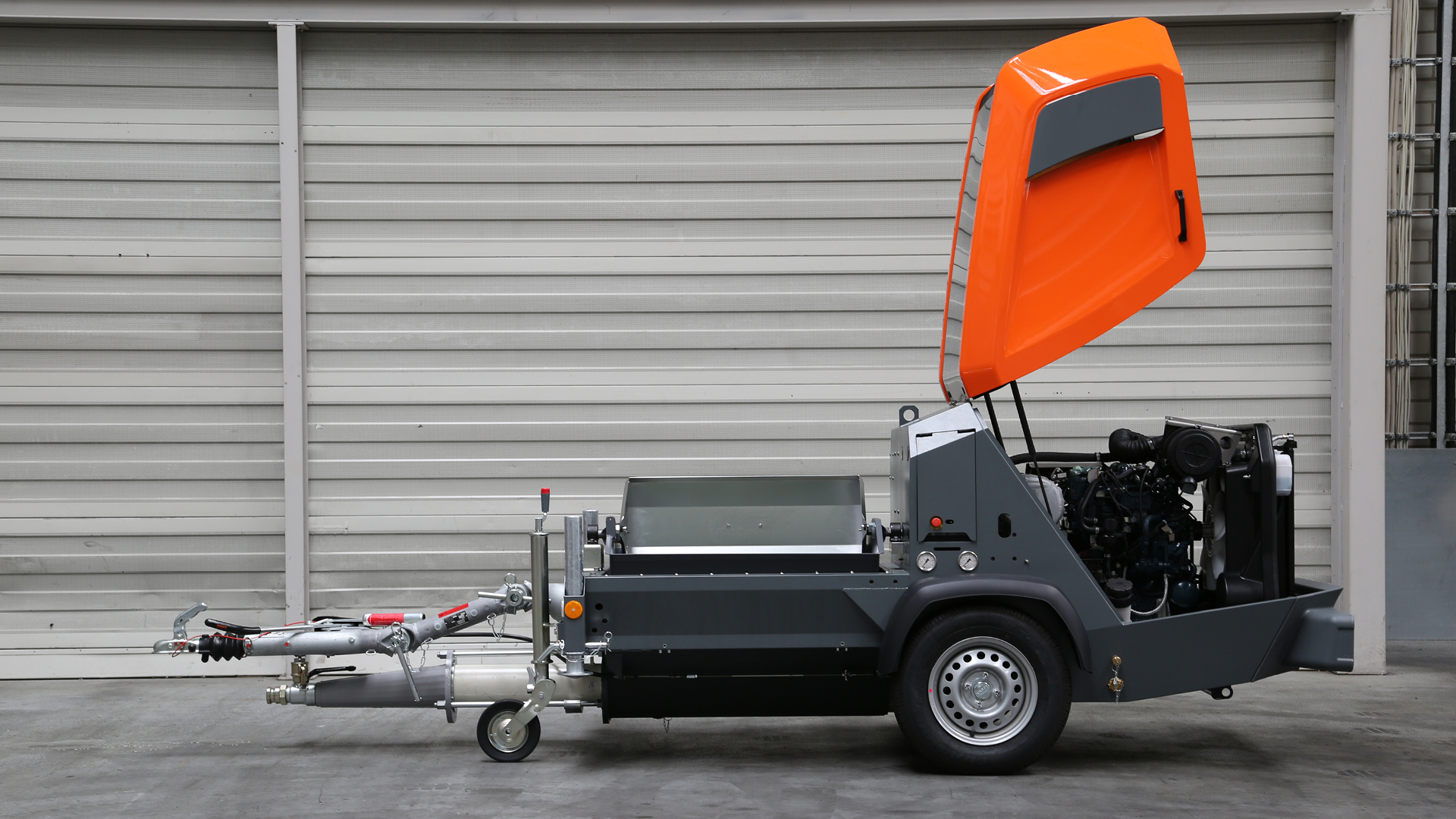

The robust plastic cover to the highest quality standards allows easy access to all important service and maintenance points.

Small but OHO

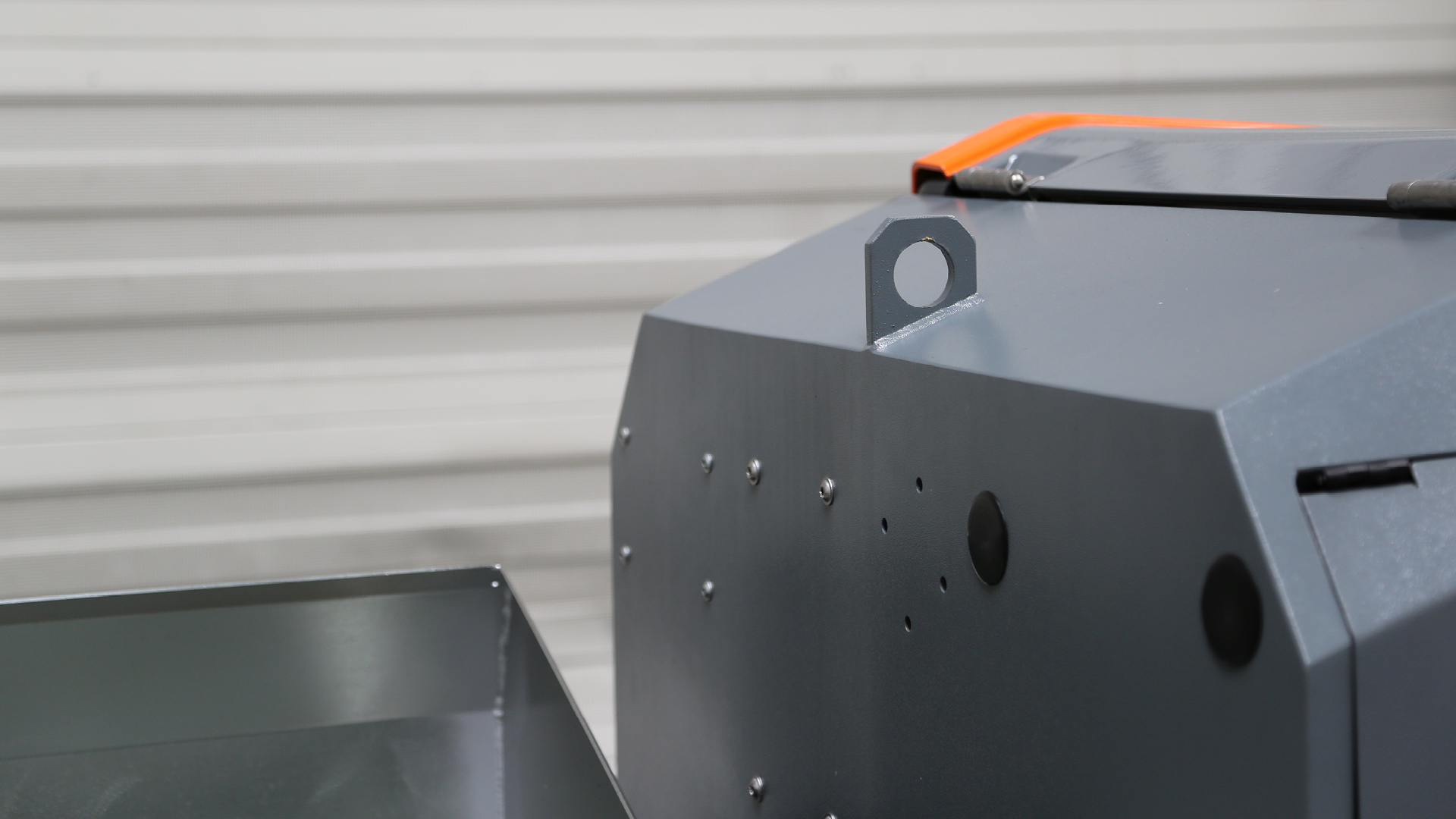

Safe relocation of the machine with a crane – thanks to the crane eye integrated as standard.

Equipment

Feature	Standard equipment	Special options*
Frame	Car coupling Lifting eye Support legs Supporting wheel	Truck coupling
Function	Vibrating screen with 15 mm mesh size/grid Vibrator	Worm parts 2L8 (max. grain size 12 mm)
Control system	Radio remote control with flow rate adjustment and motor (on/off)	Working light
Other	Standard paint finish (orange)	Special painting of the hood in RAL colors High-pressure cleaner Toolbox

The standard and special options differ depending on the country of delivery. Please contact your dealer directly if you have any questions. *Price on request.
